AIDA Press Machinery System Co. Ltd., in Nantong is in possession of several machining center for machining process.It can undertake machining, grinding, and customizing work as required by the clients.Both common parts and large-sized parts machining work can be processed here.

Depending on Press condition used for years, combining the client's requirements, AIDA will come up with modernization plans, conduct maintenance and repair work,  to ensure maximized productivity and profits for AIDA press users.We are specialisd in repairing malfunction parts, defects and improve safety so as to recover most of the machine’s performance capability in spite of 20-30 years of use.In addition, overhauls can extend press life through replacing unqualified, worn or deteriorated parts with new ones or effectively modifying the press from mechanical to servo.

Instead of investing in new equipments, make full use of the existing one and improve productivity!By technological innovations that feature automation, energy saving and high capacity, AIDA can help you to modernize your existing press equipments, transforming into high value-added presses.

AIDA will customize modernization plans after evaluating the press condition to make sure the press equipments perform at its best such :

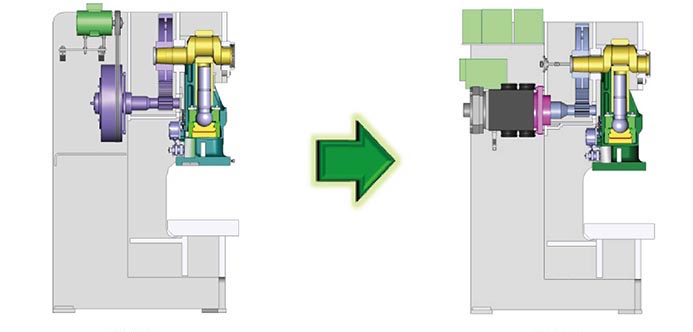

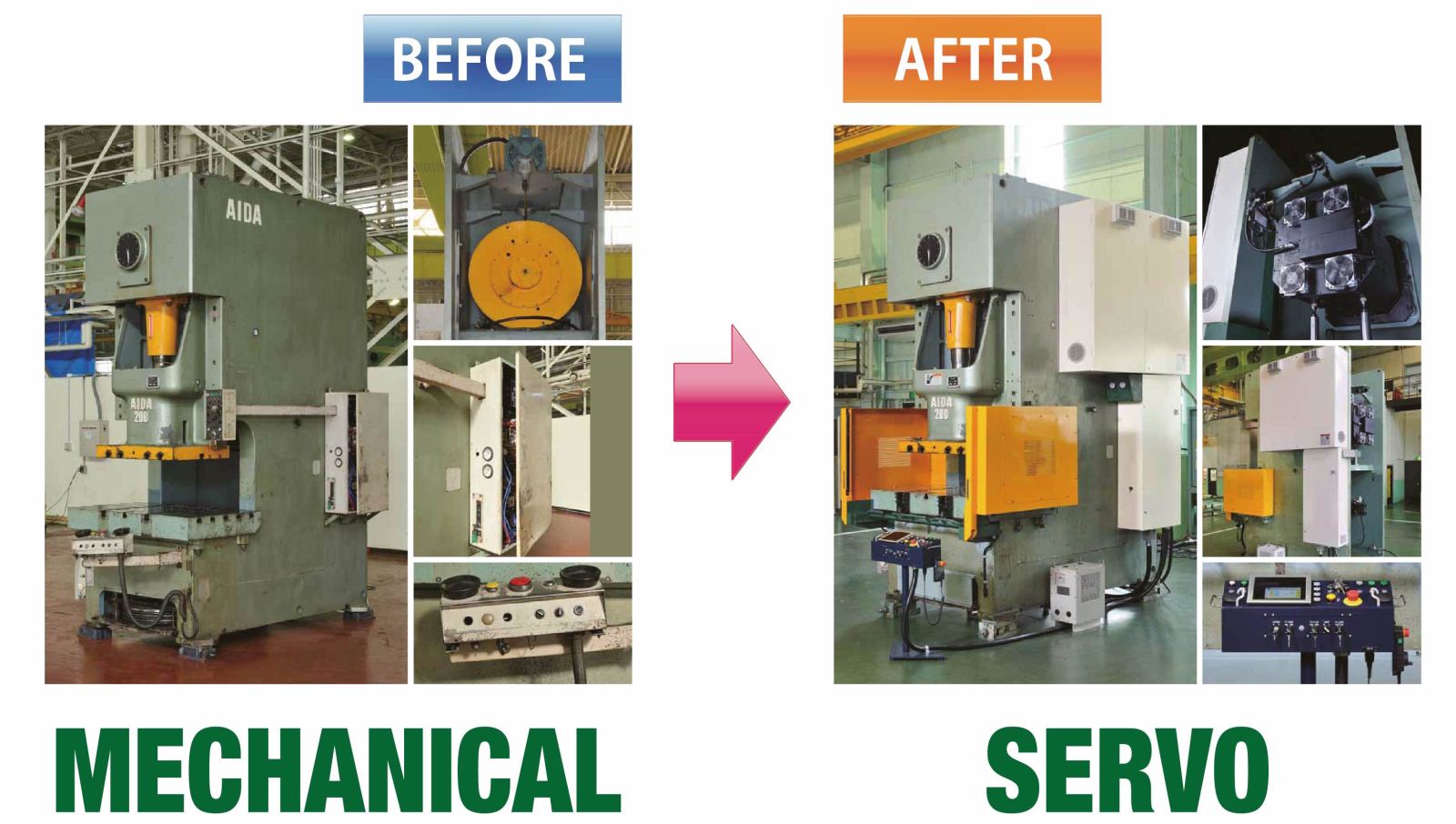

Case：Upgrade Mechanical Press to Direct Drive Servo Press

Solution：Upgrade existing main motor, fly wheel, clutch and brake to the direct drive servo motor independently developed by AIDA Upgrade the control and operation panel to servo motor control equipment

Result：Increasing productivity Able to store length and time settings in the operation database             Processing each product with the best stamping model, thus enhancing parts accuracy

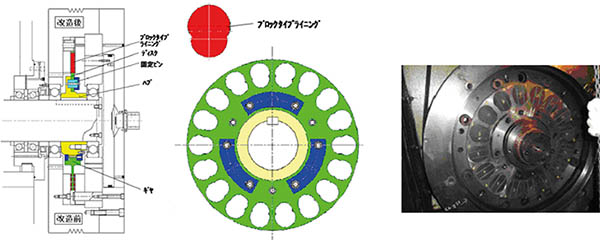

Case：Improve clutches and brakes of high speed machines In order to prevent gear parts of clutches and brakes in high speed machines from early wear and tear.

Solution：Replace the inner and outer gears of clutches and brakes with no-gear-structure wheel shells Replace friction plate with friction block, quite durable and easy to change.

Result：This gearless structure addresses the problem of tooth surface, ensuring long-term and stable performance of brakes and clutches Changeable components reduce the chance of losing wheel shell assembly parts, lower the maintenance costs and are able to perform steadily for a long time.

Issue: Die structure, limited production speed. Obsolete controlling equipment. Clutch lubricating oil leaking. Required crutch & brake replacement .

Solution:Upgrade to servo presses, As a world-class professional presses manufacturers, AIDA has successfully developed the world’s first direct drive servo motors. With over 10 years’ experience in manufacturing servo motor, it can meet the technological demands of numerous clients.

Result:Able to adjust slide motion and speed, favorable to improve productivity and accuracy. Able to form hard-to-process materials and prolong die life. Able to conserve energy through recycling and reusing the renewable power of servo motors.

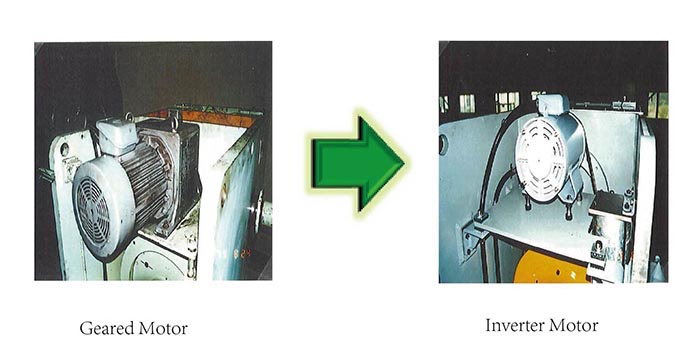

Issue:Obsolete main motor

Solution: Replace it with inverter motor.

Result:AIDA will process each product with best velocity, thus enhancing productivity and product accuracy. Reduce electricity consumption, Lower electricity cost.

Issue: Rising maintenance costs. Hope to enhance press functionality.

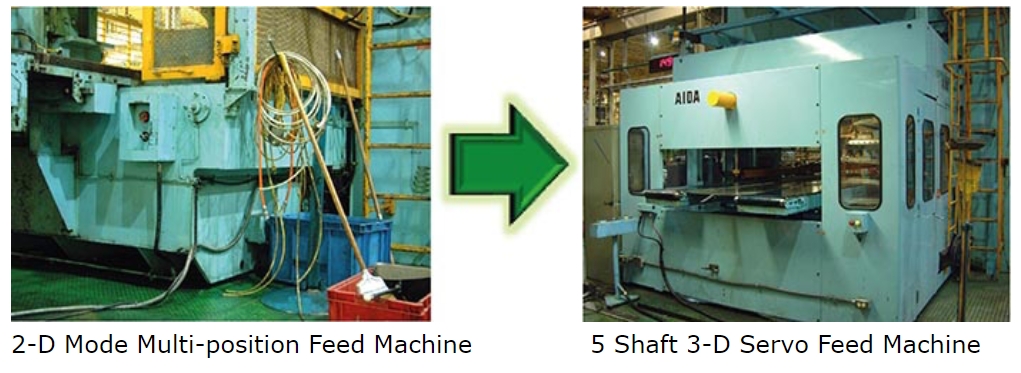

Solution: Change from 2-D motion mode to 3-D motion mode. Feed, die pliers, and lifting lengths are adjustable, providing optimal transfer condition.

Result: Reduce die costs. Make it easier to transfer through complicatedly-shaped parts. Increase productivity. Reduce die install time. Length and Time settings can be stored in operation database.

Best Case: SPM increases by 7

2D & 3D Structural Drawing
