DSF-C1-A Series

AIDA Direct Servo Formers DSF-C1-A Series

The Next Evolution in Direct Servo Formers.

- AIDA kicks off the third generation of press processing further improve productivity

- Able to set the most suitable slide movement mode in accordance with the materials for processing, increasing the formability of difficult-to-form materials .

- Equipped with AIDA’s own low RPM, high torque servo motor

   Equipped with newly-developed AC servo motor, a lighter driving system, thus the productivity is increased by 10% in comparison with traditional servo press mode (* compared with AIDA servo press)




Advantage

Able to process high-added value products with high precision
Equipped with manual step feed, making it convenient to adjust the die
99 sets of die data restorable in the database, easy to change dies

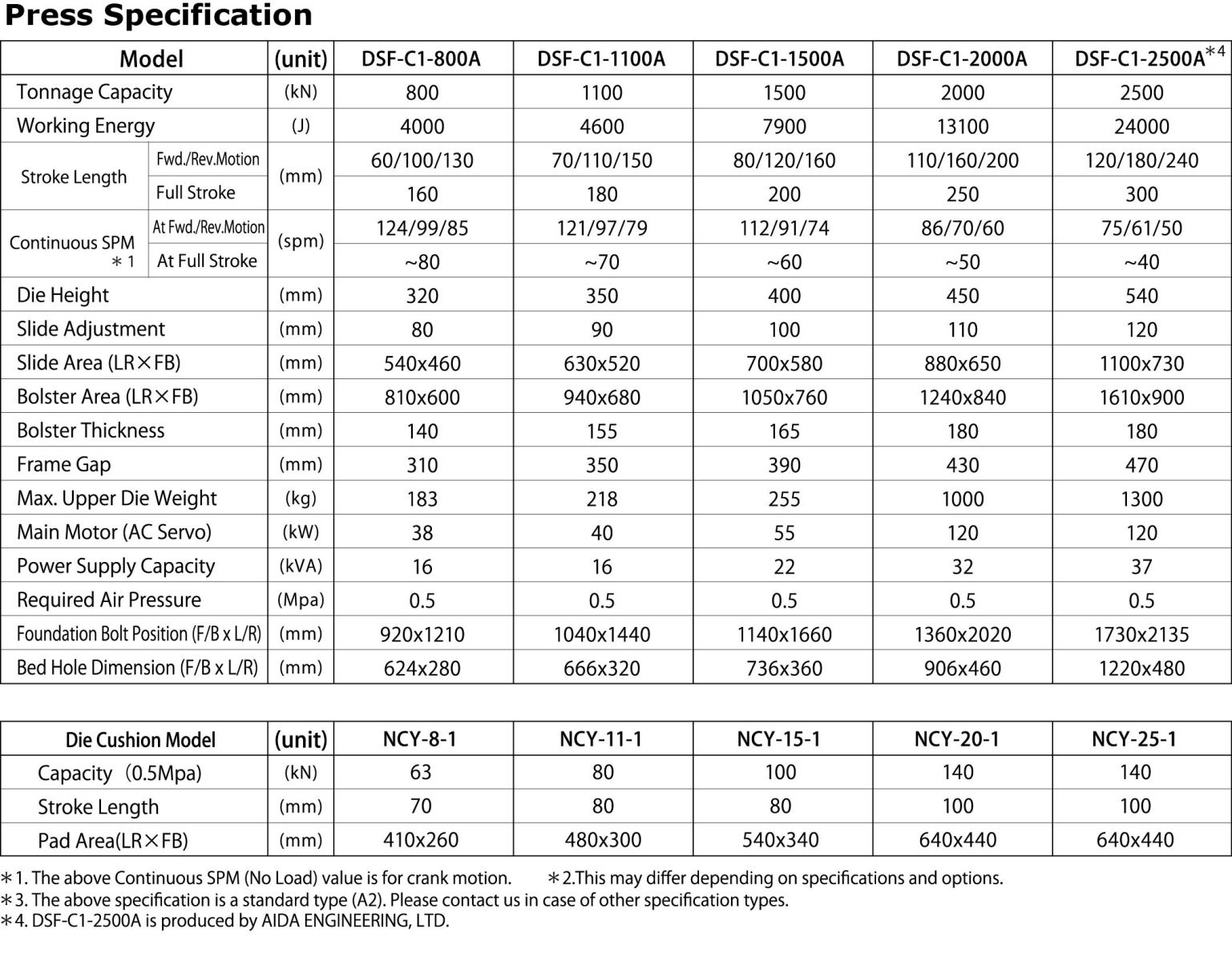

Specifications
